Technical performance

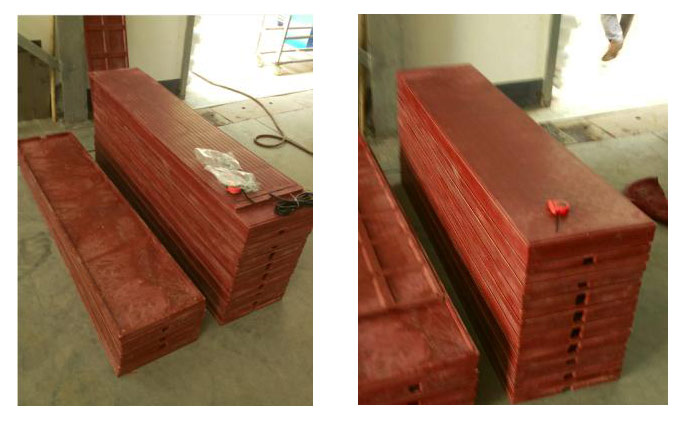

(1) Plate

Size: 1587*379*30mm

Materials: 50% polypropylene, 50% calcium carbonate

Weight: upsite-8.9kg, below-6.3kg.

Total weight: 16.5kg

Color: red

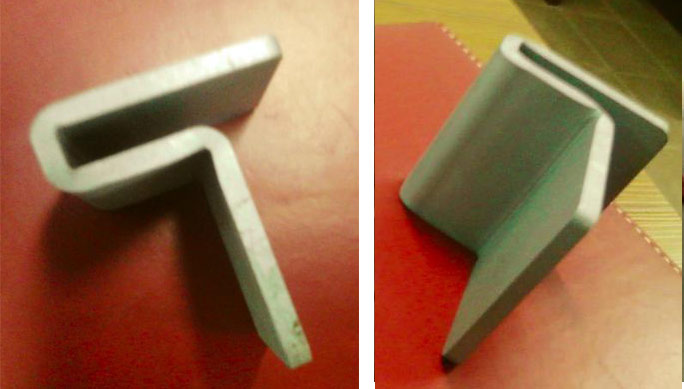

(2) Holders:

Size:

Model 1: thickness 3.5 mm, length-49.5mm, width -40mm

Model 2: thickness 2.5 mm, length-52mm, width- 40mm

Materials: hot-dip galvanized steel

Weight: 130g

(3) Connections

Size: thickness 1.5 mm, length-375mm, width- 50mm/10mm

Materials: hot-dip galvanized steel

Weight: 300g

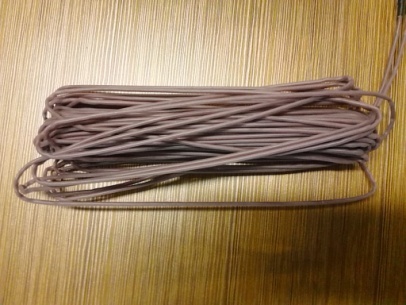

(4) Heating wire

Composition: carbon fiber, silicon

Length: 24m

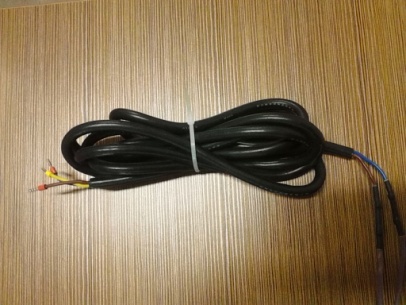

(5)Wire

3 wires with different colors

Mounted behind the plates
